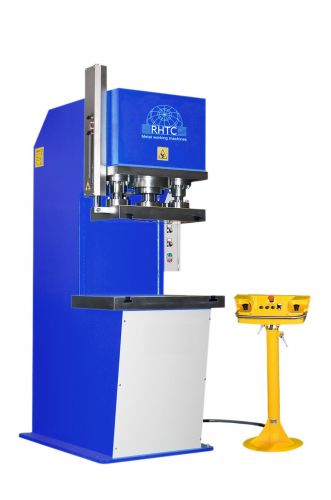

Presa hidraulica "C",100 TONE,CM 100

Technical specifications

• Force [tn]: 100
• Motor power [hp]: 10
• Throat depth [mm]: 325
• Working speed [mm/sec]: 6,2
• Approaching speed [mm/sec]: 30
• Return speed [mm/sec]: 49
• Maximum pressure [bar]: 320
• Piston stroke [mm]: 250
• Guides diameter [mm]: 50
• Lower table [mm]: 800x550
• Upper table [mm]: 650x400
• Max. vertical light [mm]: 400
• Front light [mm]: ---
• Working height [mm]: 900
• Total length [mm]: 1.400
• Total width [mm]: 860
• Total height [mm]: 2.565
• Weight [kg]: 2.820
