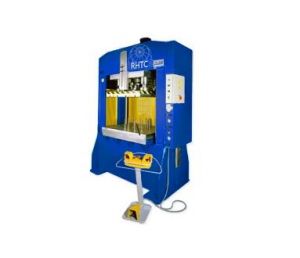

Prese hidraulice,stantare,perforare,presare,300 tone,RM 300

Technical specifications

• Force [tn]: 300
• Motor power [hp]: 15
• Oil tank capacity [dm³]: min. 30 - Oil type: TL-46
• Working speed [mm/sec]: 2.8
• Approaching speed [mm/sec]: 14
• Return speed [mm/sec]: 21
• Maximum pressure [bar]: 320
• Piston stroke [mm]: 300
• Guides diameter [mm]: 60
• Lower table size [mm]: 850x650
• Upper table size [mm]: 750x600
• Maximal vertical light [mm]: 500
• Front light [mm]: 950
• Working height [mm]: 1000
• Total lenght [mm]: 2025
• Total width [mm]: 1145
• Total height [mm]: 3115
• Weight [kg]: 5550
