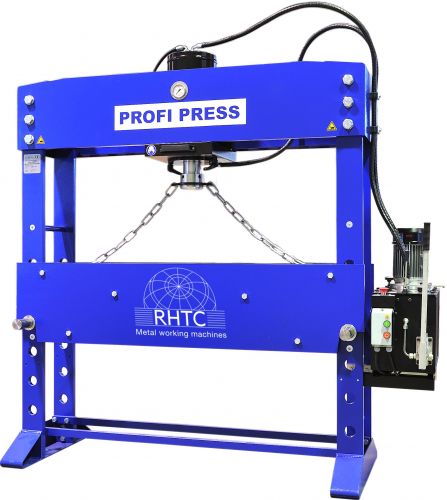

Presa hidraulica PROFI 160 tone

Technical specifications

• Pressure force [kN]: 1570
• Pressure max. [bar]: 255
• Cylinder stroke [mm]: 400
• Oil delivery [l/min]: 7,1/27,6
• Oil tank capacity [dm³]: 51
• System capacity [dm³]: 17
• Press speed [mm/sec]: 2,40
• Cylinder lowering speed [mm/sec]: 7,48
• Return speed [mm/sec]: 9,35
• Motor [kW]: 3
• Voltage [V]: 400/3
• Frequency [hz]: 50/60
• Revolutions per minute [rpm]: 3000
• Insulation protection [IP]: 54
• Insulation classification: I
• Movable cylinder: YES
• Speed: 2 speeds (incl. pressure regulation)
• Working width [mm]: 1500
• Weight [kg]: 1430

 Diameters

• Diameter of cylinder: 280
• Diameter of piston rod: 125
• Diameter of piston head: 160
